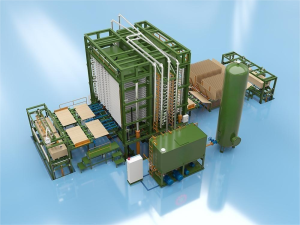

FULL AUTOMATIC 25 LAYERS PLYWOOD HOT PRESS PRODUCTION LINE
FULL AUTOMATIC 25 LAYERS PLYWOOD HOT PRESS PRODUCTION LINE

FULL AUTOMATIC 25 LAYERS PLYWOOD HOT PRESS PRODUCTION LINE

Get Instant Quotes
Nominal Pressure 10000KN
hot press platen size 4200(L)*1370(W)*60mm(H)
Feeding mode double input and double output
Plywood size(mm) 12703000mm,12703650mm,12703950mm,12701830mm,970*1830mm
Max. opening space 80mm
Number of layers 25 layers
Main oil cylinder of press Φ2602150mm8PCS
Working stroke(mm) 2000mm
Working press(kg/cm2) 17kg/cm2
Closing speed(M/min) 15M/min
Overall size(mm) 5030mm(L)*1370mm(W)*7200mm(H)
Nitrogen tank size 1440mm*6620mm(9CBM) 1PC
Weight of Nitrogen tank 4900kgs
Hydraulic station size 3200mm(L)*1500mm(W)*2800mm(H)
Tank Volume 7CBM
Total weight of hydraulic station 5800KGS
Low pressure pump motor 22KW*2PCS
High pressure pump motor 5.6KW*1PC
Elevator motor 2.2KW*1PC
Total power 51.8KW
Depth of foundation 3000mm
Total weight 120T
Hydraulic station Fully sealed dust-free design
Total weight 90T
