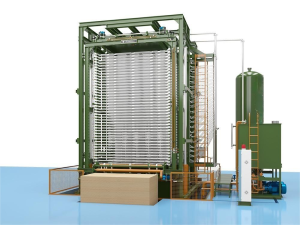

FULL AUTOMATIC 40 LAYERS PLYWOOD HOT PRESS MACHINE
FULL AUTOMATIC 40 LAYERS PLYWOOD HOT PRESS MACHINE

FULL AUTOMATIC 40 LAYERS PLYWOOD HOT PRESS MACHINE

Get Instant Quotes
Nominal Pressure 8000KN
hot press platen size 2700(L)*1370(W)*42mm(H)
Feeding mode double input and double output
Plywood size(mm) 1220*2440mm
Max. opening space 70mm
Number of layers 40 layers
Main oil cylinder of press Φ3202950mm4PCS(Main)
Working stroke(mm) 2800mm
Working press(kg/cm2) 21kg/cm2
Closing speed(M/min) 15M/min
Overall size(mm) 3590mm(L)*1370mm(W)*7700mm(H)
Nitrogen tank size 1440mm*6620mm(9CBM) 1PC
Weight of Nitrogen tank 4900kgs
Hydraulic station size 3200(L)*1500(W)*2800(H)mm
Tank Volume 7CBM
Total weight of hydraulic station 5800KGS
Low pressure pump motor 22KW*2PCS
High pressure pump motor 5.6KW*1PC
Elevator motor 2.2KW*1PC
Total power 51.8KW
Height 7500mm
Depth of foundation 5750mm
Total weight 98T
